Overloading NAT configuration



Why we configure Overload NAT: In Dynamic NAT each and every users need each IP addresses. So a lot of public IP address needed. That’s why we use Overloading NAT to avoid waste of IP address. We can use 1 or 2 or 3 IP address to finished the NAT configuration.



To configure Overloading NAT on Cisco devices, following steps are required:

1.    Configure private/public IP address mapping by using the ip nat inside source PRIVATE_IP PUBLIC_IP command

2.    Configure the router’s inside interface using the ip nat inside command

3.    Configure the router’s outside interface using the ip nat outside command















Steps to configure Overloading NAT on Cisco devices through CLI



Steps 1: Put IP address in every ports. But remember to put private IP into local inside and outside local to public IP.





PC0: Right click on PC0 then click IP Configuration and put IP 10.0.0.2    Subnet 255.0.0.0     Default Gateway 10.0.0.1

Do so same for PC1 and PC2

PC1: Right click on PC0 then click IP Configuration and put IP 10.0.0.3 Subnet 255.0.0.0 Default Gateway 10.0.0.1

PC2: Right click on PC0 then click IP Configuration and put IP 10.0.0.4 Subnet 255.0.0.0 Default Gateway 10.0.0.1



Router0 Configuration (Insert IP Address)

Go into the CLI mode.



Router>

Router>enable

Router#configure terminal

Router(config)#int Gig0/0

Router(config-if)#ip address 10.0.0.1 255.0.0.0

Router(config-if)#no shutdown

Router(config-if)#exit



Router(config)#

Router(config)#int Gig0/1

Router(config-if)#no shutdown

Router(config-if)#ip address 20.0.0.1 255.255.255.248

Router(config-if)#exit





Router1 Configuration (Insert IP Address)

Go into the CLI mode.



Router>

Router>enable

Router#configure terminal

Router(config)#int Gig0/0

Router(config-if)#ip address 20.0.0.6 255.255.255.248

Router(config-if)#no shutdown

Router(config-if)#exit



Router(config)#

Router(config)#int Gig0/1

Router(config-if)#no shutdown

Router(config-if)#ip address 30.0.1.1 255.255.255.252

Router(config-if)#exit



Router2 Configuration (Insert IP Address)

Go into the CLI mode.

Router>

Router>enable

Router#configure terminal

Router(config)#int Gig0/0

Router(config-if)#ip address 30.0.1.2 255.255.255.252

Router(config-if)#no shutdown

Router(config-if)#exit

Router(config)#ip route 0.0.0.0 0.0.0.0 int Gig0/0







Router0 Configuration (Configure the router's inside interface)

Go into the CLI mode.

Router(config)#interface Gig0/0

Router(config-if)#ip nat inside

Router(config-if)#exit

Router(config)#interface Gig0/1

Router(config-if)#ip nat outside

Router(config-if)#exit















For Overloading Configuration

Router(config)#ip nat pool overloading-pool 20.0.0.2 20.0.0.2 netmask 255.255.255.248

Router(config)#access-list 1 permit 10.0.0.0 0.0.0.255

Router(config)#ip nat inside source list 1 pool overloading-pool overload





NOTICE

HERE,             overloading -pool is a name, you can use your desire name



access-list 1 permit 10.0.0.0 0.0.0.255           command for



                        Create ACL and permit

                        0.0.0.255 is wildcard mask



ip nat inside source list 1 pool overloading-pool overload pool command for



                        TO match with Overloadig NAT and ACL permit

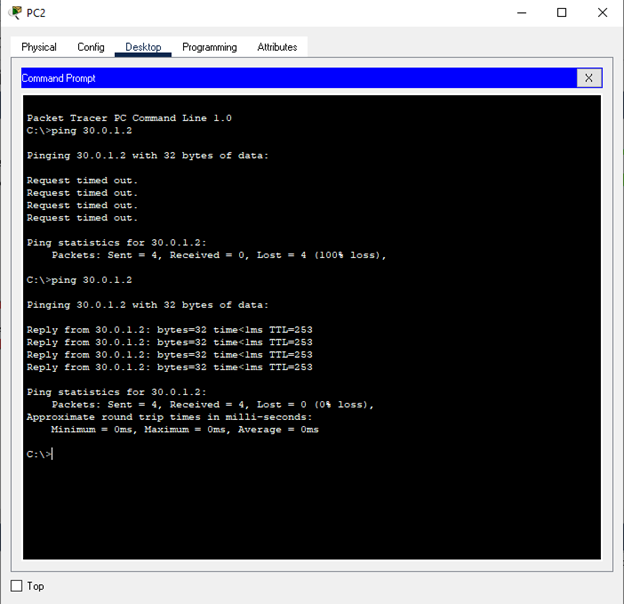

Ping form PC1

Here every pc can access the internet.
