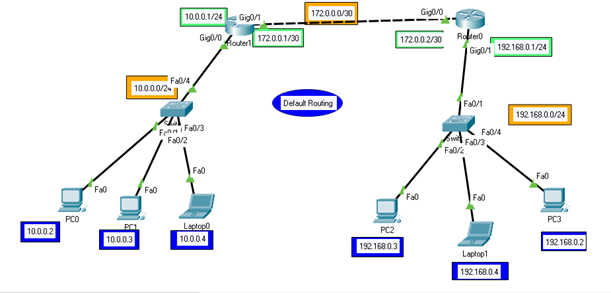

Default Routing Configuration

-



Router 1configuration

Router>

Router>enable

Router#configure terminal

Router(config)#int g0/0

Router(config-if)#ip add 10.0.0.1 255.255.255.0

Router(config-if)#no sh

Router(config-if)#ex

Router(config)#

Router(config)#int g0/1

Router(config-if)#no sh

Router(config-if)#ip add 172.0.0.1 255.255.255.252

Router(config-if)#ex

Router(config)#

Router(config)#ip route 0.0.0.0 0.0.0.0 172.0.0.2



Router 0 configuration

Router>enable

Router#configure terminal

Router(config)#int g0/0

Router(config-if)#no sh

Router(config-if)#ip address 172.0.0.2 255.255.255.252

Router(config-if)#ex

Router(config)#

Router(config)#

Router(config)#int g0/1

Router(config-if)#no sh

Router(config-if)#ip add 192.168.0.1 255.255.255.0

Router(config-if)#ex

Router(config)#

Router(config)#

Router(config)#ip route 0.0.0.0 0.0.0.0 172.0.0.1
